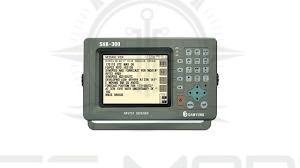

SAMYUNG SNX-300 NAVTEX
NAVTEX

New model designed to IMO resolution and performance standards effective from July 1st . 2005 (IMO Resolution MSC.148(77) ITU-R, M.540-2, M.625-3, IEC-61162). English channel(518KHz) & local channel(490KHz/4209.5KHz) are simultaneously receiving by two receivers built-in.

Teklif Formu

Receiving messages sets-up from outer navigational equipment and channels. Storage for over 200 advisory including 8,000 receiving letters in average length per channel. 50 messages permanently stored per channel and 72-hour-long storage of receiving letters. Automatic power blockage run by voltage protection circuit. Interfaced to INS(Integrated Navigation System) according to IEC-61162.

GENERAL
Temperature
-15°C to +55°C
Humidity
95% at 40°C
Power supply
DC 10 ~ 36V, 12W@24V
Size
255W×163H×75D (mm)
Weight
2.6kg
RECEIVER
Receiving frequency
518KHz(English), 490KHz or 4209.5KHz(Local)
Receiving method
F1B NAVTEX broadcast
Receiving sensitivity
2μV e.m.f(50Ϊ),4% error rate
Frequency accuracy
± 10Hz
Antenna impedance
50Ϊ(Active), Power 9V (inner supply)
Message
A:navigation alarm, B:weather alarm, C:iceberg alarm, D:R&S, E:weather forecast, F:Pilot message, G:AIS message, H:LORAN message, J:SATNAV message, K:Other navigational aid message, L:additional navigation alarm, Z:no message
CONTROLLER & DISPLAY
Display
5.6”LCD, 320 dots × 240 dots
Display type
Selectable transmitter & receiver, Receiving message, Storage & Control of message, Frequency display, Adjustable LCD & keyboard brightness, Self-diagnosis and alarm fuction available
Storage capability
200 per channel including 1,600,000 letters
Permanent message storage
50 including 400,000 letters
Message storage duration
Max. 72 hours
PRINTER
Print method
thermal serial dot
Character size
9dots (high)×7dots (wide)
Speed
52.5 cps(Normal), 80 cps(Condensed)
COMPONENTS
STANDARD
Main Unit(SNX-300)
Antenna(SAN-300)
Installation Material
Instruction Manual
OPTION
Printer
Power Supply
  • SAMYUNG SNX-300 NAVTEX - Brochure İndir
  • SAMYUNG SNX-300 NAVTEX - Operator's Manual İndir
