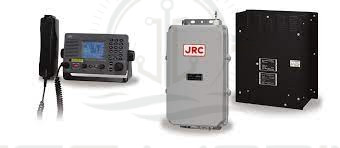

MF/HF controller settings The MF/HF controller uses a 3.8-inch high visibility LCD display, which you can adjust at your own convenience. The display has 10 dim settings and you can set the contrast up to 11 different levels. An integrated screensaver and the ability to assign a commonly used menu to a user key for direct access, are just a few of the possibilities. Digital audio The MF/HF controller integrates an advanced digital audio amplifier, which increases the amount of power, making the receiving message loud and clear. Distress alerts The MF/HF controller includes a prominent distress button, with features to prevent accidental activation. When in distress, you can send a DSC message instantly, transmitting your MMSI, position, time of position and nature of distress, enabling an immediate response for search and rescue efforts. Digital audio The MF/HF controller integrates an advanced digital audio amplifier, which increases the amount of power, making the receiving message loud and clear. Connect a remote control Getting a second operation controller onboard is easy. Connect a second MF/HF controller to the transceiver and position the controller at a secondary location on the ship. The second MF/HF station is fully operable and you can transfer saved channel data to optimize your operation. Unified design The MF/HF controller design allows you to carry out all operations simply by using the same unified keyboard layout as found in JRC’s VHF radiotelephone. The keypad is solid and responsive, which allows for precise operation. The keys are also backlit, making it easy to operate in low-light settings on the bridge. NBDP (telex) option Complement your MF/HF with the NBDP* kit for telex communcation with shore radio stations and with other ships. It includes a10.4-inch data terminal equipment featuring a color display with a variety of color backgrounds. The LCD gives you a bright picture with excellent color consistency, even when you are viewing the display from the side. USB The USB 2.0 port located on the front panel allows you to connect a mass storage device to save and load messages. Flexible installation All MF/HF models are minimum configured as standard, consisting of a MF/HF controller+handset, transceiver and antenna tuner. The 150W model can be applied for non-solas vessels, but also configured with necessary options up to GMDSS A4 area. In contrast to the other two models, the 150W version has a smaller transceiver and antenna tuner which allows for a more flexible installation approach in confined spaces. High power models When more power output is required, simply select the 250W or 500W version. Additionally, the new 250W and 500W version come with a redesigned antenna tuner, transceiver and power supply designed to fit into an optional 19 inch rack :NCU-515A. Antenna tuner Outside mounting available as standard. Built-in antenna grounding circuit. Same mounting dimensions as preceding model (JSS-296/596). GMDSS console The MF/HF models can be installed together with a set of Inmarsat-C: JUE-87 in the optional GMDSS console: NCU-531A. Optionally the controller and handset of VHF radiotelephone: JHS-770S/780D can be installed in the same console. In the box • MF/HF controller+Handset • Transceiver • Antenna tuner • MF/HF controller to transceiver cable (5 m) • Power supply (250W/500W only) • Manua Options • Power supply NBD-2150 (150W) • Battery charger NBB-724/714 • MF/HF controller NCM-2150 (max 2) • MF/HF controller cable 7ZCJD0343 (5 m) • Connection box NQD-2250 (for 2nd controller) • Mounting bracket MPBC42957 (flush) • Mounting bracket MPBX44354 (table) • Handset NQW-261 (IP66) • NBDP kit 7ZZJD0089 (contents see left) • Self supporting antenna NAW-208S (10 m) TX • Whip antenna* NAW-60 (6 m) RX and/or WKR • Joint box JQD-69C (for RX & WKR) • Junction box NQD-2253 (for antenna tuner) • Printer (flush) NKG-91 • Printer (table) NKG-800/DPU-414 • DMC NCH-321A Self diagnosis With JRC’s MF/HF radio equipment you can perform self-diagnosis checks on the controller and transceiver, allowing for easy maintenance and more reliability. The results are directly shown on the screen and can be saved as a log (up to 10 possible) or printed (with optional printer). Remote Maintenance System (RMS) JRC’s unique RMS allows remote monitoring of bridge equipment from ashore. Using JRC VDR and INMARSAT FB satellite communication equiipment, JRC can establish a highly secured connection to the vessel and cost-effectively and accurately determine the operating status of the JRC equipment while at sea. JRC global service network (Star Network) JRC has been providing sales and support of products since 1915. Today, JRC offers comprehe nsive assistance through its organisation, in partnership with a worldwide StarNetwork of over 270 fully trained and qualified partners and agents, assisting you 24 hours a day, 7 days a week and 365 days a year.
